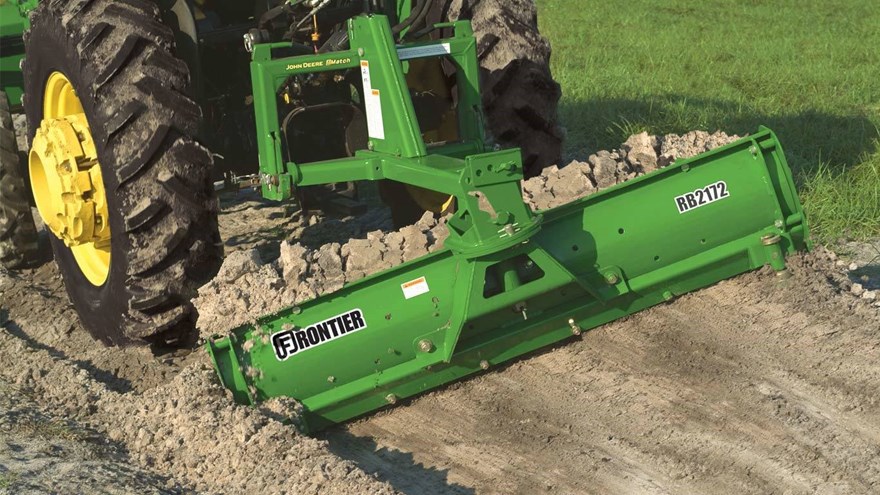

John Deere RB21 Series Rear Blades
Features
Angle adjustment for fine precision grading and leveling
Turntable angle adjustment
The turntable on the RB10, RB11, and RB21 Series Rear Blades makes it possible to adjust the angle to four different positions in both forward and reverse for those extra-tedious jobs.
Manually adjusting the blade forward makes it easy to handle leveling needs in a variety of soil conditions. Swing the blade around and use it to backfill or clear debris or snow.
Frame's tubular steel is crafted for tough jobs
Tubular steel frame
The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading. Its full-radius moldboard more than handles landscaping needs.
NOTE: This applies to all RB Series Frame except the RBL Series.
Hitch attaches quickly and efficiently
Hitch on RB10, RB20, and RB21 Series Rear Blades
The Frontier™ RB10, RB20, and RB21 Series Rear Blades are all iMatch™ quick-hitch compatible and compatible with Category 1 hitches. Both systems provide a quick, efficient hookup.
Reversible cutting edge for longer wear life
Frontier™ rear blade cutting edge
All Frontier RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.
Optional end plate kit holds extra material
End plate option on RB24 Rear Blade
End plate option on RB24 Rear Blade
End plates on RB23 Rear Blade
End plates allow Frontier™ RB Series Rear Blades to hold more material while dragging it from place to place. This is ideal for leveling uneven terrain.
Each of the field conversion kits are for a pair of end plates and prevent the blades from windrowing material when backfilling or leveling.
Optional skid shoes increase cutting edge life
Figure 1 Shown on RB24 Series
Skid shoes increase the life of the cutting edge on all RB Series Rear Blades and avoid damaging the work surface while cleaning corrals or plowing snow.
NOTE: Skid shoe style shown in image above used with RB2060, RB2072, and RB2084 models.
The skid shoe kits include one pair and allow the blade to ride on the shoes at a set height to allow the operator control of the blade depth.
The bundles listed below identify the rear blades they fit.
Hydraulic cylinder kit for rear blades
Hydraulic cylinder on RB23 Rear Blade
The field-conversion hydraulic cylinder kit includes one cylinder. This kit allows the operator to position the blade without having to get off of the operator's station.
NOTE: A rear selective control valve (SCV) is required.
Dimensions
| Width in working position | 1.5 m 5 ft |
|---|---|
| Moldboard length | 152.4 cm 60 in. |
| Moldboard height | 43.2 cm 17 in. |
| Moldboard thickness | 0.6 cm 0.25 in. |
Weight
| Machine | 177.8 kg 392 lb |
|---|---|
| Shipping per unit | 193.2 kg 426 lb |
Tractor requirements
| PTO hp (kW) | Max: 2WD - 48.5 kW 65 hp Max: 4WD - 44.7 kW 60 hp |
|---|
Angle, tilt, offset, pivot
| Pivot angle degrees | 360 degree (angle) |
|---|---|
| Angle forward, number of positions | Three positions, on each side up to 53 degree (angle) |
| Angle reverse, number of positions | Three positions, on each side up to 53 degree (angle) |
| Tilt positions/degrees | Three positions, up to 22 degree (angle) up or down |
| Offset position left or right | 15.2 or 30.5 cm 6 or 12 in. |
Hitch
| Type | Cat. 1 |
|---|---|
| Quick hitch compatibility | iMatch compatible (quick-attach system) |
Reversible cutting edge
| Thickness | 1.3 cm 0.5 in. |
|---|---|
| Height | 15.2 cm 6 in. |
Duty
| Type | Medium |
|---|
Parking stand
| Standard with machine | Yes |
|---|
Set-up time
Warranty
| Time period | 1 year |
|---|
