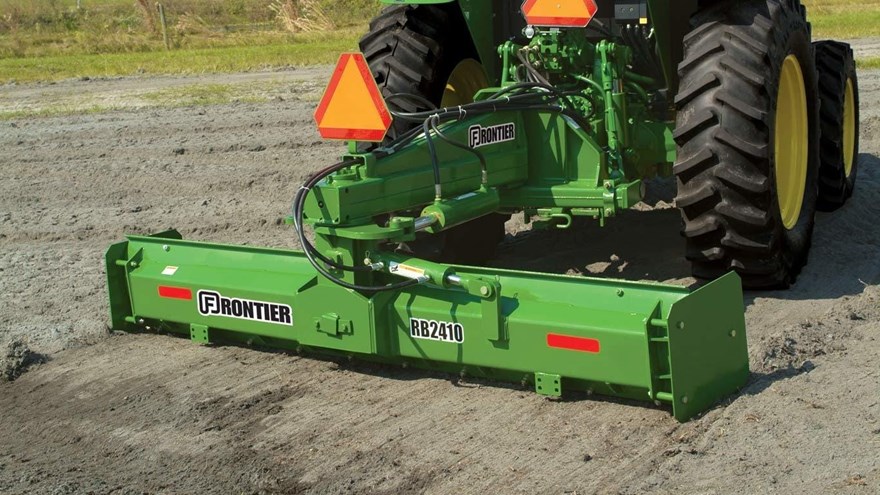

John Deere RB24 Series Rear Blades
Features
Frame's tubular steel is crafted for tough jobs
Tubular steel frame
The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading. Its full-radius moldboard more than handles landscaping needs.
NOTE: This applies to all RB Series Frame except the RBL Series.
Hitch attaches quickly and efficiently
Rear blade connected to tractor
Hitch on RB23 Rear Blade
The Frontier™ RB23 and RB24 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.
Manually adjustable angle, tilt, and offset
Adjustable turntable for 360-degree turning radius
The turntable on the Frontier™ RB22, RB23, and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection.
Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.
Reversible cutting edge for longer wear life
Frontier™ rear blade cutting edge
All Frontier RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.
Optional end plate kit holds extra material
End plate option on RB24 Rear Blade
End plate option on RB24 Rear Blade
End plates on RB23 Rear Blade
End plates allow Frontier™ RB Series Rear Blades to hold more material while dragging it from place to place. This is ideal for leveling uneven terrain.
Each of the field conversion kits are for a pair of end plates and prevent the blades from windrowing material when backfilling or leveling.
Optional skid shoes increase cutting edge life
Figure 1 Shown on RB24 Series
Skid shoes increase the life of the cutting edge on all RB Series Rear Blades and avoid damaging the work surface while cleaning corrals or plowing snow.
NOTE: Skid shoe style shown in image above used with RB2060, RB2072, and RB2084 models.
The skid shoe kits include one pair and allow the blade to ride on the shoes at a set height to allow the operator control of the blade depth.
The bundles listed below identify the rear blades they fit.
Hydraulic cylinder kit for rear blades
Hydraulic cylinder on RB23 Rear Blade
The field-conversion hydraulic cylinder kit includes one cylinder. This kit allows the operator to position the blade without having to get off of the operator's station.
NOTE: A rear selective control valve (SCV) is required.
Tail wheel field-installed kits for rear blades
Dimensions
| Width in working position | 2.4 m 8 ft |
|---|---|
| Moldboard length | 243.8 cm 96 in. |
| Moldboard height | 48.3 cm 19 in. |
| Moldboard thickness | 0.8 cm 0.3125 in. |
Weight
| Machine | 658.2 kg 1,451 lb |
|---|---|
| Shipping per unit | 704.9 kg 1,554 lb |
Tractor requirements
| PTO hp (kW) | Maximum: 2WD: 119.3 kW 160 hp Maximum: 4WD: 108.1 kW 145 hp |
|---|---|
| Hydraulic offset kit (hoses and fittings included) | Standard, manual offset and tilt require one hydraulic remote |
Angle, tilt, offset, pivot
| Pivot angle degrees | 360 degree (angle) |
|---|---|
| Angle forward, number of positions | Four positions right, up to 26 degree (angle) Five positions left, up to 38 degree (angle) |
| Angle reverse, number of positions | Four positions right, up to 26 degree (angle) Five positions left, up to 38 degree (angle) |
| Tilt positions/degrees | Two positions up and down, up to 15 degree (angle) up and down |
| Offset position left or right | 0 to 91.44 cm 0 to 36 in. |
Hitch
| Type | Category 2, Category 3 |
|---|---|
| Quick hitch compatibility | ASAE Category 2 and 3 quick coupler |
Reversible cutting edge
| Thickness | 1.3 cm 0.5 in. |
|---|---|
| Height | 15.2 cm 6 in. |
Duty
| Type | Heavy plus |
|---|
Parking stand
| Standard with machine | Standard |
|---|
Set-up time
Warranty
| Time period | 1 year |
|---|
