John Deere SS10B Series Broadcast Spreaders

New Products / John Deere / Lawn and Garden / Attachments Accessories and Implements / Utility Tractor Attachments and Implements / Frontier™ Seeding Equipment / SS10B Series Broadcast Spreaders

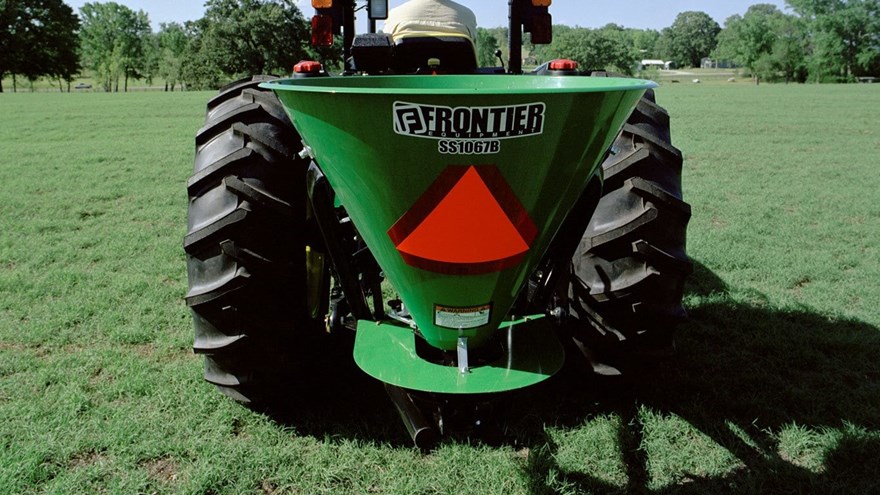

SS10B Series Broadcast Spreaders Model Photo



Features

Hopper strong enough for rough handling and heavy use

All-steel hopper endures rough and heavy useAll-steel hopper endures rough and heavy use
Inside view of SS10B Series HopperInside view of SS10B Series Hopper

The one-piece, seamless, all-steel hoppers are strong enough to endure rough handling and heavy use.

Hitching capabilities maximize operation time

Compatible with 3-point hitch systemsCompatible with 3-point hitch systems
iMatch makes attachment time quick and easy iMatch makes attachment time quick and easy

The SS20B Series Broadcast Spreaders are compatible with tractors featuring Category 0 (only SS1036B and SS2036B) and Category 1 3-point hitches.



The optional iMatch™ quick-hitch compatibility (only SS1067B and SS2067B) makes attachment time quick and easy, maximizing operation time.



NOTE: If this option is chosen, the broadcast spreader must be specified to the factory as iMatch.



Power take-off (PTO) driven broadcast spreaders

Broadcast spreaders are PTO drivenBroadcast spreaders are PTO driven
Close-up viewClose-up view

The SS10B and SS20B Series Broadcast Spreaders are both PTO driven:

  • Compatible with tractors ranging from 11.9 kW (16 hp) to 41 kW (55 hp)
  • Equipped with 540-rpm PTO and a sealed, heavy-duty gearbox containing extreme pressure (EP) grade grease.

Swath control levers available to accommodate various tasks

Ground-driven controlsGround-driven controls
#

Different swath spread patterns are available so the broadcast spreader can accommodate various tasks with precision and efficiency.



All broadcast spreaders allow three different swath spread patterns:

  • Predominantly left
  • Predominantly right
  • Left to right

Field-installed agitator kits for broadcast and pendular spreaders

All the field conversion agitator kits listed below allow operators to use multiple types of seed or fertilizer without clumping up.

Hopper cover field conversion kits for broadcast and pendular spreaders

The hopper covers seal tightly around the containers so seed or fertilizer will not get wet or spill while in transport. Hopper covers are made of polyvinyl chloride (PVC).



The field conversion kits listed below are identified for the appropriate broadcast or pendular spreaders.

Spout, deflector shields, and discharge kits for broadcast and pendular spreaders

Deflector shield conversion kits for broadcast spreaders ensure that material is thrown where the operator chooses.



Side-row discharge conversion kits for broadcast spreaders focus the spread to the side of the tractor.



The left-right direction attachment concentrates material to specific areas when using pendular spreaders.



A salt and sand spout kit and an optional locking nut are also available.

Field-installed remote gate kit for broadcast spreaders

The field-installed remote gate kit allows the operator to easily engage the spreader from the seat without having to dismount the tractor.

Sorry, currently there are no specs but check back with us later.
