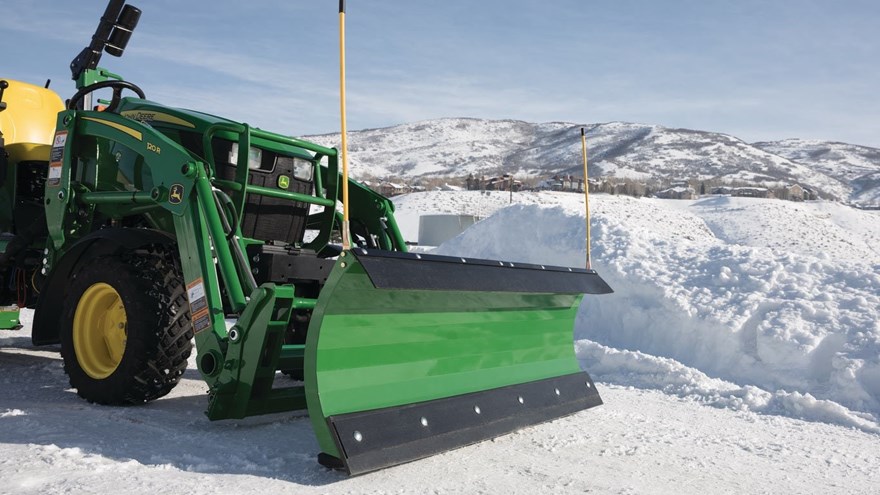

John Deere AF10F Front Blade
Features
Reversible Cutting Edge Provides Twice the Durability and Work Life
Steel Cutting Edge (Base)
Urethane Cutting Edge (Field Installed)
The reversible cutting edge enhances performance and extends working life, for improved performance on textured surfaces the Urethane Cutting Edge is available.
Skid Shoes Prevent Ground Gouging
Steel Skid Shoe (Base)
Urethane Skid Shoe (Field Installed)
The steel skid shoe extends the life of the cutting edge while avoiding damage to the working surface. To prevent damage to textured surfaces, while prolonging the life of the cutting edge, Urethane Skid Shoes are available.
Trip-Edge Protection Prolongs Working Life
The trip edge protects the blade, loader, and tractor if the edge of the blade contacts an obstacle.
Easy Adjustments Increase Productivity
With the pin and hole blade angle adjustments an operator can manually adjust the angle of the blade, choosing from five adjustments for an overall 30-degree rotation
Compatibility with Quick-Change Attachment Carrier Increases Uptime
Toolless attachment of the front blade with the Quick-Change attachment carrier increases uptime.
To connect, align the attachment carrier with the hooks of the front blade, raise the boom for the carrier to engage the hooks of the blade, and roll back the attachment carrier. Then install the retaining pins, and the carrier is ready to work.
Hydraulic Angle Kit to Easily Adjust Front Blade Angle
The hydraulic angle kit allows angling of the front blade up to 30 degrees in any position to the left or right of the center.
*Requires third-function hydraulics (see loader options for third-function kit information).
*Compatible with AF10F serial number lXFAF10FPJ002201 and higher.
Urethane Cutting Edge
The reversible urethane cutting edge improves performance by preventing damage to textured surfaces during snow removal.
Urethane Skid Shoe Kit
The urethane skid shoe kit enhance performance by preventing damage to textured surfaces, while prolonging the life of the cutting edge.
Rubber Deflector Kit
The rubber deflector kit, sitting on top of the blade, decreases snow buildup on the grill screen during snow removal.
Plow Guide Kit For AF10F Front Blade
The plow guide kit helps provide a visual of the blades edge, preventing curb and wall strikes.
Dimensions
| Width | 151.3 cm 59.6 in. |
|---|---|
| Height | 53.3 cm 21 in. |
| Depth | 67.3 cm 26.5 in. |
| Cutting width | 151.3 cm 59.6 in. |
Attachment carrier
| Current series style | H120 and H130 |
|---|
Weight
| Operational | 77.6 kg 171 lb |
|---|---|
| Shipping | 98.4 kg 217 lb |
Moldboard
| Thickness | 12 gauge 2.8 mm 0.109 in. |
|---|---|
| Height | 53.3 cm 21 in. |
Angle/pivot
| Standard adjustment | Manual |
|---|---|
| Degrees (each side) | 30 and 60 degree (angle) |
Hydraulic cylinders
| Type | None |
|---|
Skid shoes
| Standard | Yes |
|---|
Set-up time
| Labor hours | 0.5 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected | 05 December 2016 |
|---|
