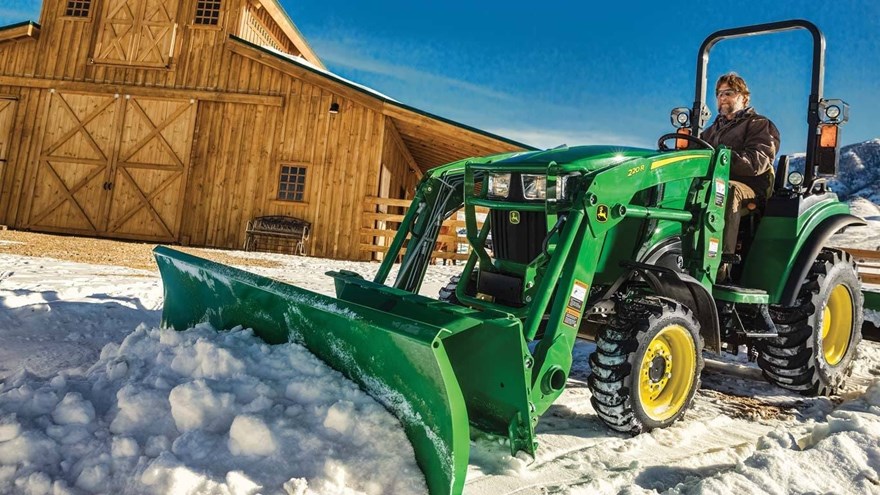

John Deere AF11E Series Front Blades
Features
Twice the durability and work life with reversible cutting edges
AF11 and AF12 Series cutting edge
The heat-treated steel cutting edge on the Frontier AF11 and AF12 Series Front Blades are reversible for twice the durability and work life.
Frame is heavy-duty for long, dependable implement life
AF11 and AF12 Series Front Blades are built strong
The loader-mounted front blade is made of heavy-duty steel to resist bending and provide longer wear capability on the Frontier™ AF11 and AF12 Series Front Blades.
Hydraulic angle adjustment for hard-to-reach places
AF11 Series and AF12 Series Front Blades angle adjustment
The hydraulically controlled angle can be adjusted 30 degrees to each side to overcome the toughest spots. This feature saves time and creates professional-grade results. A loader third-function hydraulic line is required.
NOTE: AF11E models have an optional hydraulic angle adjustment available.
Quick-Tatch™ system for quick and easy attachment
AF11E and AF12E connecting points
AF11 and AF12 Series frame
Attaching the Frontier AF11 and AF12 Series Front Blades to a John Deere loader is easy with the Quik-Tatch feature. Just line up the loader's connecting points to the attachment frame; then, lock the frame in place.
Optional hydraulic angle adjustment for AF11E model
Optional hydraulic angle adjustment
A hydraulic front blade angle-adjustment kit is available for the Frontier™ AF11E model. It allows easy angle adjustment in order to overcome the toughest spots while working, saving time and creating professional-grade results. A loader third-function hydraulic line is required.
Back drag attachments for AE11E Series Free-Stall Scrapers
Bolt-on back drag is perfect for tight areas
The bolt-on back drag attachment allows operators to rotate the AE11 Series Free-Stall Scraper forward and move material away from a wall, obstacle, or other hard-to-reach areas.
The pullback assembly does not need to be removed to obtain maximum production of the free-stall scraper.
The field-installed bolt-on back drag attachments come in a variety of sizes for the free-stall scrapers.
Dimensions
| Width | 182.9 cm 72 in. |
|---|---|
| Height | 58.4 cm 23 in. |
| Depth | 86.4 cm 34 in. |
| Cutting width | 182.9 cm 72 in. |
Attachment carrier
| Current series style | 300, 400, 500 |
|---|
Weight
| Operational | 181.4 kg 400 lb |
|---|---|
| Shipping | 195 kg 430 lb |
Moldboard
| Thickness | 10 gauge 3.4 mm 0.13 in. |
|---|---|
| Height | 58.9 cm 23.2 in. |
Angle/pivot
| Standard adjustment | Manual |
|---|---|
| Degrees (each side) | 30 |
Hydraulic cylinders
Skid shoes
| Standard | Yes |
|---|
Set-up time
| Labor hours | 0.5 |
|---|
Warranty
| Time period | 1 year |
|---|
