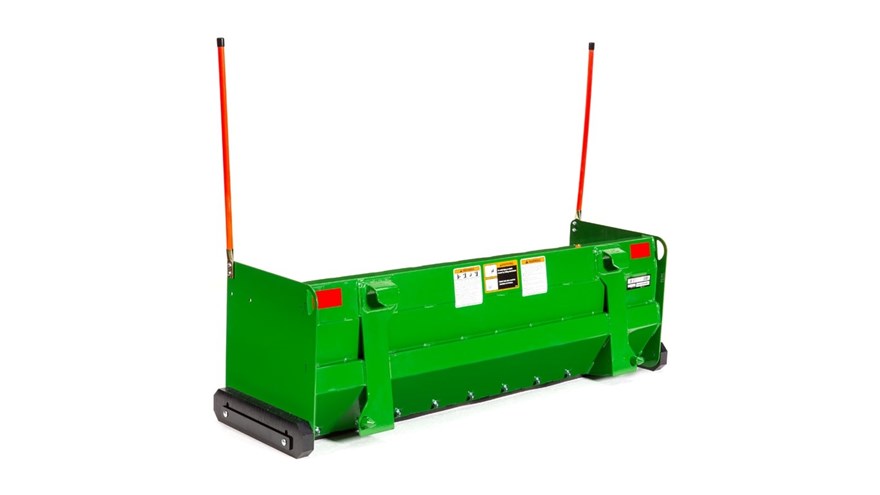

John Deere AS10F Series Snow Pushes
Features
Increased uptime with Quik-Tatch capability
Quik-Tatch capable
Hook up the snow push by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place.
Multiple working widths to match tractor
Reversible cutting edge increases life of snow push
Rubber cutting edge
The cutting edge is reversible and adjustable to increase the wear life of the part. The steel blade comes standard, but an optional rubber blade is available.
Options available to increase ease of use
Pull-back kit
Optional pull-back kit
An optional pull-back kit is available to reach snow other blades cannot reach, such as away from a garage, retaining wall, and curbs. It is available in either a steel edge or a rubber edge.
Poly skid shoes
Optional poly skid shoes
Optional skid shoes are available to extend the life of the snow push and provide additional non-marking protection.
Edge marker kit
Optional edge marker
An optional edge marker kit is available to assist operators in maneuvering close to objects that can be damaged or may damage the push.
Dimensions
| Width | 128.5 cm 50.6 in. |
|---|---|
| Height | 49.0 cm 19.3 in. |
| Depth | 54.9 cm 21.6 in. |
| Cutting width | 121.9 cm 48.0 in. |
Attachment carrier
| Current series style | 100, 200 |
|---|
Weights
| Equipment | 64.4 kg 142 lb |
|---|
Cutting edge
| Steel, spring reset | Yes |
|---|
Moldboard
| Thickness | 12 gauge 2.66 mm 0.1046 in. |
|---|---|
| Height | 48.3 cm 19.0 in. |
Capacity
Skid shoes
| Type | Welded |
|---|
Set-up time
| Labor hours | 0.25 |
|---|
Warranty
| Time period | 1 year |
|---|
Additional information
| Date collected | 28-August-2017 |
|---|
