John Deere AS11E Series Snow Pushes
Features
Stay safe with a spring-loaded, steel trip edge
Great safety feature
The Frontier™ AS11E Snow Pushes are equipped with a spring-loaded, steel trip edge. This safety feature protects the cutting edge from immovable objects.
Back drag attachment for AS11E Snow Push

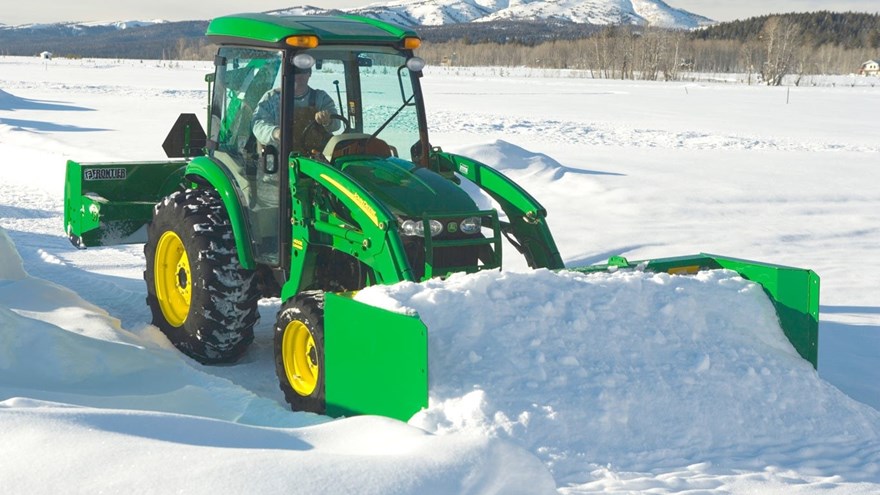

AS11E Series Snow Push
The field-installed back drag kit allows AS11E Snow Push operators to move snow from those hard-to-reach areas that other blades cannot get to.
Field-installed rubber edge kit for back drag attachment on AS11E Snow Push
For fresh or dry snow pushing
AS11E Series Snow Push rubber edge
The replacement rubber edge kits come in different lengths, and are for the back drag attachment on AS11E Snow Pushes.
The rubber edges are for fresh and dry snow pushing, removing the piles of snow a steel blade leaves behind.
Because they are reversible, they have a longer wear life.
Dimensions
| Width | 280.4 cm 110.38 in. |
|---|---|
| Height | 101.1 cm 39.8 in. |
| Depth | 105.4 cm 41.5 in. |
| Cutting width | 279.4 cm 110 in. |
Attachment carrier
| Current series style | 300, 400, 500 |
|---|
Weights
| Equipment | 427.7 kg 943 lb |
|---|---|
| Shipping | 450.4 kg 993 lb |
Cutting edge
| Steel, spring reset | Yes |
|---|
Moldboard
| Thickness | 10 gauge 3.4 mm 0.135 in. |
|---|---|
| Height | 96.8 cm 38.1 in. |
Capacity
Skid shoes
| Type | Welded |
|---|
Set-up time
| Labor hours | 0.25 hour |
|---|
Warranty
| Time period | 1 year |
|---|
