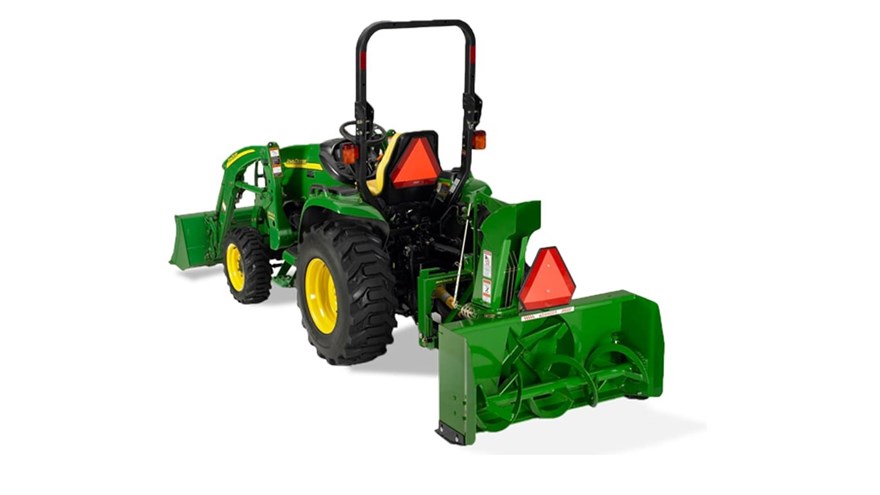

John Deere SB11 Series Snowblowers
Features
Chute deflector makes snow removal easier and more accurate
Both the manual and hydraulic chute deflectors are beneficial when operating around buildings or down city streets.
An optional electric discharge chute is available for models SB1154 and SB1164 (cab tractors only).
Manual chute deflector is standard equipment
Manual chute deflector adjustment shown
The SB11 Series Snowblowers come with a manual chute deflector adjustment.
Hydraulically controlled chute deflector is an optional feature
Optional hydraulically controlled chute deflector
The hydraulically controlled chute deflector is available as an option. Controlled from the seat of the tractor, the chute deflector allows the operator to effectively control snow discharge accuracy.
Chute rotation can be easily adjusted for versatility
Easily adjust chute rotation
Chute rotation adds versatility by allowing operators to blow snow exactly where they want it.
Standard-equipped manual chute rotation adjustments on the SB11 Series are easily done from the seat of the tractor.
Multiple hitch capabilities for different uses
iMatch™ quick-hitch compatible
SB11 Series Snowblowers have different hitch capabilities. Models SB1148, SB1154, SB1164, and SB1174 are Category 1 and iMatch compatible. Model SB1184 is Category 1 and iMatch compatible and Category 2 and Quik-Coupler compatible. Model SB1194 is Category 2 and Quik-Coupler compatible.
All SB13 Series models come with a Category 2 3-point hitch. In addition, SB1308, SB1308R, and SB1309R are Category 2 and 3 compatible. The SB13 Series models are all Quik-Coupler compatible.
Impeller blade provides fast snow removal
Enables faster and farther snow removal
Moving snow faster and blowing it farther is simple with four impeller blades on the SB11 Series Snowblowers.
Skid shoes are adjustable for increased life and durability
Adjustability increases durability and life
Adjustable steel skid shoes on the SB11 Series increase the durability and life of the snowblowers.
Chute deflector and rotation kits for SB11, SB13, and SB21 Series Snow Blowers
Dimensions
| Height | 66 cm 26 in. |
|---|---|
| Transport width | 189.2 cm 74.5 in. |
| Working width | 188 cm 74 in. |
| Length | 121.3 cm 47.75 in. |
Weights
| Operating | 284.9 kg 628 lb |
|---|---|
| Shipping | 324.3 kg 715 lb |
Chute
| Type | Two-part |
|---|---|
| Deflector adjustment | Standard Manual Optional Hydraulic cylinder or electric actuator |
| Rotation type | Manual or hydraulic |
| Diameter | 30.5 cm 12 in. |
| Rotation degrees | 210 degree (angle) |
Drum
Auger
| Diameter | 38.1 cm 15 in. |
|---|---|
| Speed | 170 rpm |
| Overload protection | Single |
Impeller
| Blades | Four |
|---|---|
| Speed | 540 rpm |
| Diameter | 61 cm 24 in. |
| Width | 22.5 cm 8.875 in. |
Tractor compatibility
| PTO | 540 rpm |
|---|---|
| Minimum hp | 26 kW 35 hp |
| Maximum hp | 37 kW 50 hp |
| PTO overload protection | Shearbolt |
Chain
| Roller | 60 |
|---|---|
| Idler adjustment | Manual |
Hitch
| Compatibility | Cat. 1 |
|---|---|
| iMatch | Yes |
Cutting edge
| Type | Welded |
|---|
Skid shoes
| Type | Steel, adjustable |
|---|
Set-up time
| Labor hours | One hour |
|---|
Warranty period
| Machine | One year |
|---|---|
| Gear box | One year |
