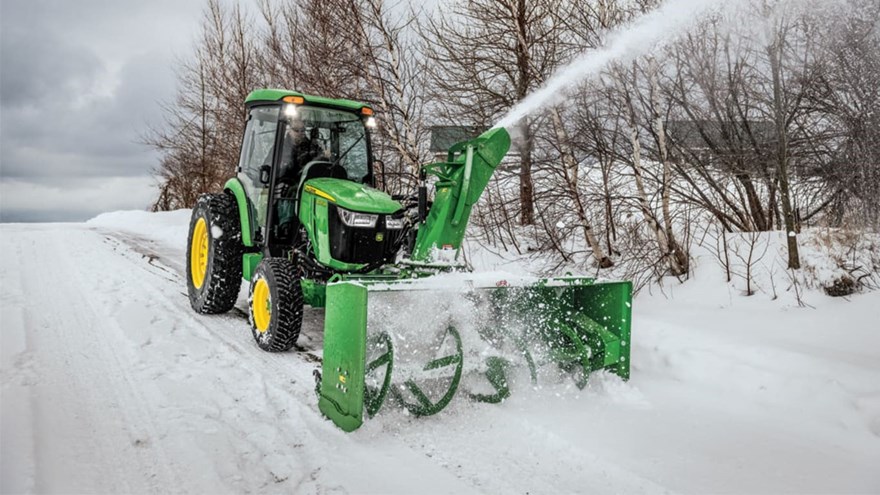

John Deere SB12F Front-Mount Snowblower
SB12F
Front-Mount Snowblower
- Remove snow while driving forward
- 80-inch clearing capacity
- 245° hydraulic chute rotation
- Hydraulic chute deflector - field installed
- Get a Quote Build Your Own
- Send to a Friend
- Payment Calculator
- View Product Brochure
-
Share
Get A Quote
Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.
Send To A Friend
Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.
Loan Calculator
Use the Loan Calculator to help you determine the financing and payment options that are best for you.
**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.
Features
Remove Snow while Driving Forward
The SB12F Series is a heavy-duty front mount snow blower that reduces operator fatigue and increases productivity while maneuvering tight spaces.
Operators can focus on what’s ahead and reduce snow compaction. The SB12F Series Front Mount Snowblower eliminates the need for an operator to constantly be turned around during snow removal, causing less strain and operator fatigue, especially during long working hours and for less experienced operators. Operators can perform snow removal jobs while focused on what’s ahead, instead of behind them, with a front mounted snowblower.
Improving maneuverability with the subframe hitch, SF12F to sit close to the tractor for easy control in tight spaces. The subframe hitch will mount to both the front and underside of the tractor, providing additional reinforcement to the tractor and for the PTO shaft that carries power from the rear PTO.
80-inch Clearing Capacity
The SB12F Series Front Mount Snowblower has a clearing width of 80-inches. Built to handle all types of snow removal, it is ideal for both large residential and commercial jobs.
Adjustable skid shoes extend Snowblower Life
The in-base skid shoes on the SB12F Series will extend the life of your snowblower by elevating it off the ground to protect the bottom side in tough conditions. Skid shoes are mounted to each side of the snowblower to ensure a smooth cleaning operation.
Skid shoes are both adjustable and replaceable. Adjusting your skid shoes will help to prevent damage, or injury, from thrown debris; and can be easily replaced it they wear out from excessive use.
In-base skid shoes are made of high-carbon steel.
245° of Hydraulic Chute Rotation
Operators can adjust the chute direction quickly and conveniently from the seat of their tractor, with in-base Hydraulic Chute Rotation. Rotate chute up to 245 degrees to throw snow where desired.
Cutting Edge Durability for Lasting Performance
The SB12F Series Snowblower comes standard with a replaceable and reversible cutting edge, made of steel that has the durability needed to scrape the layer of ice underneath the snow.
- Steel provides significant wear life improvement for commercial applications or in abrasive conditions, while protecting the snow blower housing from the snow removal surface.
- Reversible cutting edges provide long-lasting performance and twice the wear life.
- Cutting Edges can be easily unbolted and replaced if worn out from excessive use.
- Tivar Poly Cutting Edge is available as a dealer-installed option.
Hydraulic Chute Deflector (Field Installed)
Control the blowing angle directly from the seat of the tractor with the Hydraulic Chute Deflector Kit, increasing productivity by reducing the operators down-time getting off and on the tractor.
*Requires 3rd Function Loader Controller*
Tivar Cutting Edge (Field Installed)
Reduce markings and harsh contact with surfaces by installing the Tivar Cutting Edge Kit.
Dimensions
| Height | 76.2 cm 30 in. |
|---|---|
| Transport width | 204.5 cm 80.5 in. |
| Working width | 203.2 cm 80 in. |
| Length | 124.5 cm 49 in. |
Weights
| Operating | 406 kg 895 lb |
|---|---|
| Shipping | 461.3 kg 1017 lb |
Chute
| Type | Three-part |
|---|---|
| Deflector adjustment | Standard Hydraulic |
| Rotation type | Hydraulic |
| Diameter | 26.7 cm 10.5 in. |
| Rotation degrees | 210 degree (angle) |
Drum
Auger
| Diameter | 50.8 cm 20 in. |
|---|---|
| Speed | 170 rpm |
| Overload protection | Single |
Impeller
| Blades | Four |
|---|---|
| Speed | 540 rpm |
| Diameter | 66 cm 26 in. |
| Width | 26.7 cm 10.5 in. |
Tractor compatibility
| PTO | 540 rpm |
|---|---|
| Minimum hp | 22.4 kW 30 hp |
| Maximum hp | 60 hp 80 hp |
| PTO overload protection | Shearbolt |
Chain
| Roller | 60 |
|---|---|
| Idler adjustment | Automatic |
Hitch
| Compatibility | Cat. 1, 2 |
|---|---|
| iMatch | Yes |
| Quick coupler | Yes |
Cutting edge
| Type | Replaceable |
|---|
Skid shoes
| Type | Steel, adjustable |
|---|
Set-up time
| Labor hours | One hour |
|---|
Warranty period
| Machine | One year |
|---|---|
| Gear box | One year |
