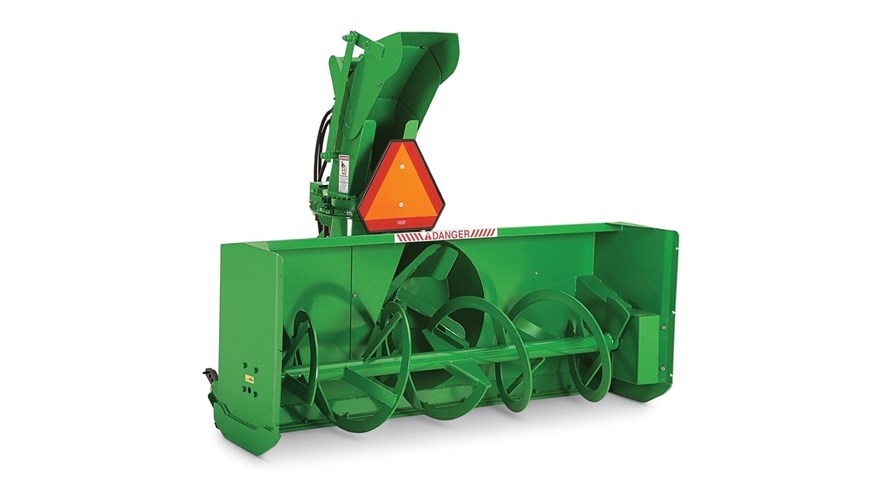

John Deere SB12 Series Snowblowers
Features
Cutting edge is durable for lasting performance
Durable cutting edge
Cost savings are realized because of the cutting edge's long-lasting performance.
Blow snow anywhere with the hydraulic chute rotation
Allows operators to blow snow where they want
The hydraulic chute rotation adds versatility by allowing operators to blow snow exactly where they want.
Adjustable skid shoes extend life of cutting edge
Extend life of cutting edge
The adjustable skid shoes extend the life of the cutting edge.
Control the angle with the hydraulic chute deflector
Operator controls deflector angle
The hydraulic chute deflector allows operators to control the blowing angle.
Field-installed cutting edge kits for SB12 and SB13 Series 3-Point Snow Blowers
Dimensions
| Height | 76.2 cm 30 in. |
|---|---|
| Transport width | 204.5 cm 80.5 in. |
| Working width | 203.2 cm 80 in. |
| Length | 124.5 cm 49 in. |
Weights
| Operating | 406 kg 895 lb |
|---|---|
| Shipping | 461.3 kg 1017 lb |
Chute
| Type | Three-part |
|---|---|
| Deflector adjustment | Standard Hydraulic |
| Rotation type | Hydraulic |
| Diameter | 26.7 cm 10.5 in. |
| Rotation degrees | 210 degree (angle) |
Drum
Auger
| Diameter | 50.8 cm 20 in. |
|---|---|
| Speed | 170 rpm |
| Overload protection | Single |
Impeller
| Blades | Four |
|---|---|
| Speed | 540 rpm |
| Diameter | 66 cm 26 in. |
| Width | 26.7 cm 10.5 in. |
Tractor compatibility
| PTO | 540 rpm |
|---|---|
| Minimum hp | 22.4 kW 30 hp |
| Maximum hp | 60 hp 80 hp |
| PTO overload protection | Shearbolt |
Chain
| Roller | 60 |
|---|---|
| Idler adjustment | Automatic |
Hitch
| Compatibility | Cat. 1, 2 |
|---|---|
| iMatch | Yes |
| Quick coupler | Yes |
Cutting edge
| Type | Replaceable |
|---|
Skid shoes
| Type | Steel, adjustable |
|---|
Set-up time
| Labor hours | One hour |
|---|
Warranty period
| Machine | One year |
|---|---|
| Gear box | One year |
