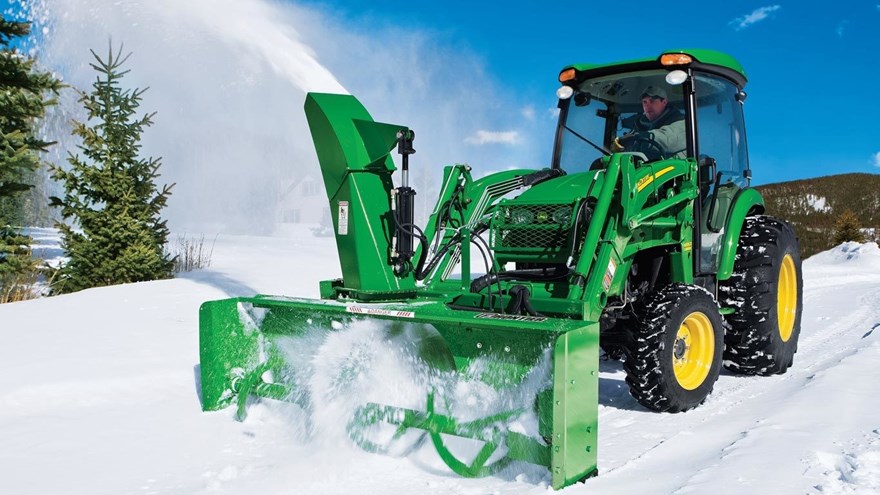

John Deere SB21 Series Snowblowers
Features
Discharge chute deflection
Optional hydraulic cylinder controls chute
Manual adjustment of the chute angle on the spout is standard equipment on the SB21 Series Loader-Mounted Snowblowers.
An optional electrically controlled hydraulic cylinder is available to adjust the deflector angle.
The chute rotation and optional chute angle adjustment are powered by the hydraulic power pack and controlled with rocker switches installed in the tractor operator station.
Discharge chute rotation comes as base equipment
Electrically controlled hydraulic motor
As base equipment on SB21 Series Loader-Mounted Snowblowers, the discharge chute rotation is controlled with an electrically controlled hydraulic motor.
The chute rotation is powered by the hydraulic power pack and controlled with a rocker switch installed in the tractor operator station.
Hydraulic three-point power packs required for SB21 Series Loader-Mount Snow Blowers
Self-contained hydraulic system
The SB21 Series Loader-Mounted Snow Blower's hydraulic three-point power packs are self-contained and powered by the tractor's rear power take-off (PTO). They are Category 1 and iMatch™ quick-hitch compatible.
- HP2025 Hydraulic Power Pack is required for model SB2164 Snow Blower.
- HP2134 Hydraulic Power Pack is required for model SB2176 Snow Blower.
Add suitcase weights (shown above) for additional ballast to the rear of the tractor.
Torque-controlled impeller moves excess snow easily
Reduces plugging in heavy snow
Frontier™ SB21 Series Loader-Mounted Snowblowers monitor the torque applied to the impeller, which is an industry-exclusive feature.
The speed of the auger slows down when maximum torque is sensed, alerting the operator to slow ground speed. This allows the impeller to move away excess snow.
This feature reduces plugging during operation.
Choose from a 162.6-cm or 193-cm (64-in. or 76-in.) working width to move large volumes of snow
193-cm (76-in.) working width shown
The SB21 Series Loader-Mounted Snowblowers come in a 162.6-cm or 193-cm (64-in. or 76-in.) working width, a 152.4-cm or 68.6-cm (60-in. or 27-in.) working height, and a 38.1-cm (15-in.) diameter auger. These features make quick work of snow-removal jobs.
Steel skid shoes are adjustable and replaceable. The cutting edge is also replaceable.
Field-installed drift cutters kits
Chute deflector and rotation kits for SB11, SB13, and SB21 Series Snow Blowers
Dimensions
| Snow blower working width | 163 cm 64 in. |
|---|---|
| Power pack width | 97 cm 38 in. |
| Snow blower machine height | 152 cm 60 in. |
| Power pack height | 132 cm 52 in. |
Weight
| Snow blower operating | 363 kg 800 lb |
|---|---|
| Power pack operating | 243 kg 535 lb |
| Snow blower shipping | 476 kg 1,050 lb |
| Power pack shipping | 243 kg 535 lb |
Tractor compatibility
| PTO horsepower | 18.6-25.4 kW 25-34 hp |
|---|---|
| PTO rpm | 540 rpm |
| Loader (current John Deere series) | 300 |
Chute
| Type | Two-part |
|---|---|
| Deflector adjustment (standard) | Manual |
| Deflector adjustment (optional) | Hydraulic cylinder |
| Rotation type | Hydraulic |
| Diameter | 21 cm 8.25 in. |
Auger
| Diameter | 38 cm 15 in. |
|---|---|
| Speed, rpm | 200 rpm |
| Type | Single |
| Flighting thickness | 1 cm 0.3125 in. |
Impeller
| Blades | Four |
|---|---|
| Diameter | 61 cm 24 in. |
| Width | 18 cm 7 in. |
| Speed, rpm | 680 rpm |
| Impeller shaft diameter | 3 cm 1.25 in. |
Hydraulics
| Fan relief valve setting | 207 bar 3000 psi |
|---|---|
| Auger relief valve setting | 138 bar 2000 psi |
| Oil cooler | Standard |
| Flow @ 3000 psi (207 bar) | At 207 bar: 133.60 L/min At 3000 psi: 16 gpm |
| Power pack reservoir | 56.8 L 15 gal. |
| System capacity | 68.1 L 18 gal. |
Cutting edge
| Type | Replaceable, reversible |
|---|---|
| Thickness | 1 cm 0.375 in. |
| Width | 5.1 cm 2 in. |
Skid shoes
| Configuration | Adjustable, six positions |
|---|---|
| Replaceable | Standard |
Drift cutters
| Optional | Yes |
|---|
Construction
| End plate thickness | 0.47 cm 0.1875 in. |
|---|---|
| Back plate thickness | 0.3 cm 0.12 in. |
| Fan housing thickness | 0.3 cm 0.12 in. |
| Fan blade thickness | 0.64 cm 0.25 in. |
| Side panel bottom thickness | 1.27 cm 0.5 in. |
Shipping
| Configuration | One unit |
|---|
Set-up time
| Labor hours | 2.5 to 3 hours |
|---|
Warranty
| Time period (machine) | 1 year |
|---|
